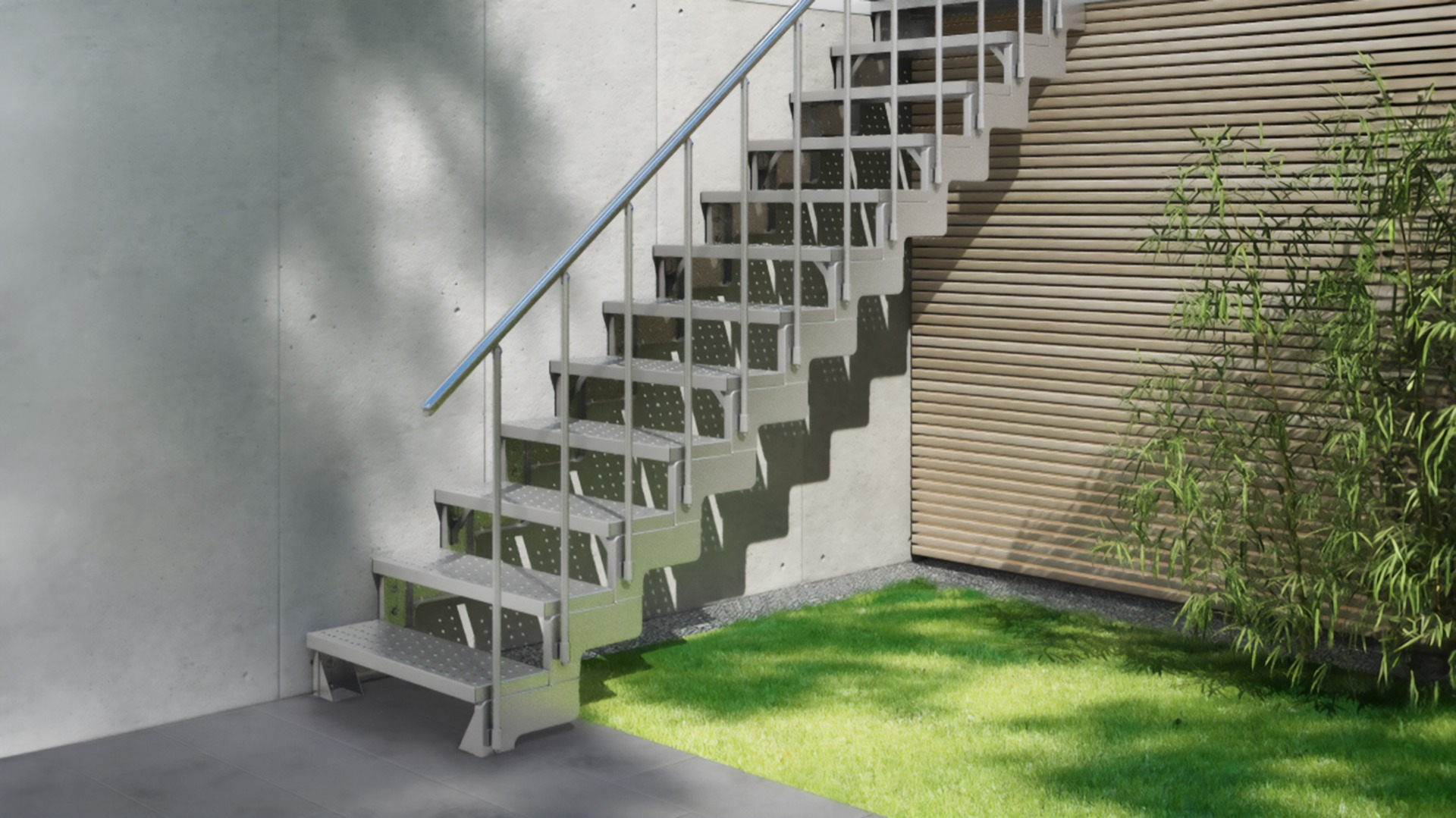

Outdoor metal Staircase GARDENTOP
Safe, sturdy and weather resistant staircase designed with perforated treads
Product description
We supply the staircase with all the components you will need for the height of staircase that matches you specification. Complete with steel side panels, robust, hardwearing treads and step reinforcements. We also supply a ground centre pole for higher tread applications. Although the staircase is hard wearing it still comes with clean, pure lines.
GARDENTOP is ideal for outdoor use, from your home to the garden? from a balcony to the ground floor? from your decking or patio to the lawn? in many ways this outdoor staircase can connect floors and levels of your outdoor living space while still be stylish in design. Part of this design means you have a staircase with hidden fixings and perforated steel treads.
BUILT TO WITHSTAND THE ELEMENTS
As the staircase is made for the outdoors, we must ensure the raw materials used to manufacture the GARDENTOP are fully weather resistant, and that the use of the stairs is safe even in wet conditions. All the components are hot-dip galvanised steel this includes the side panels and stringers and perforated sheets used for the non-slip treads.
You have several options to choose from. Firstly, measure the floor-to-floor height? This is a straight measure not angled. To give you an idea on how adaptable the GARDENTOP staircase its starts from a 2 tread with a height of 36 - 44 cm and goes up to 12 treads with a height 216-264 cm. From this you can decide how many treads will suit your application. You also have the option of two widths of tread, we offer 80cm or 100cm.
The Gardentop stairs are available in the following heights:

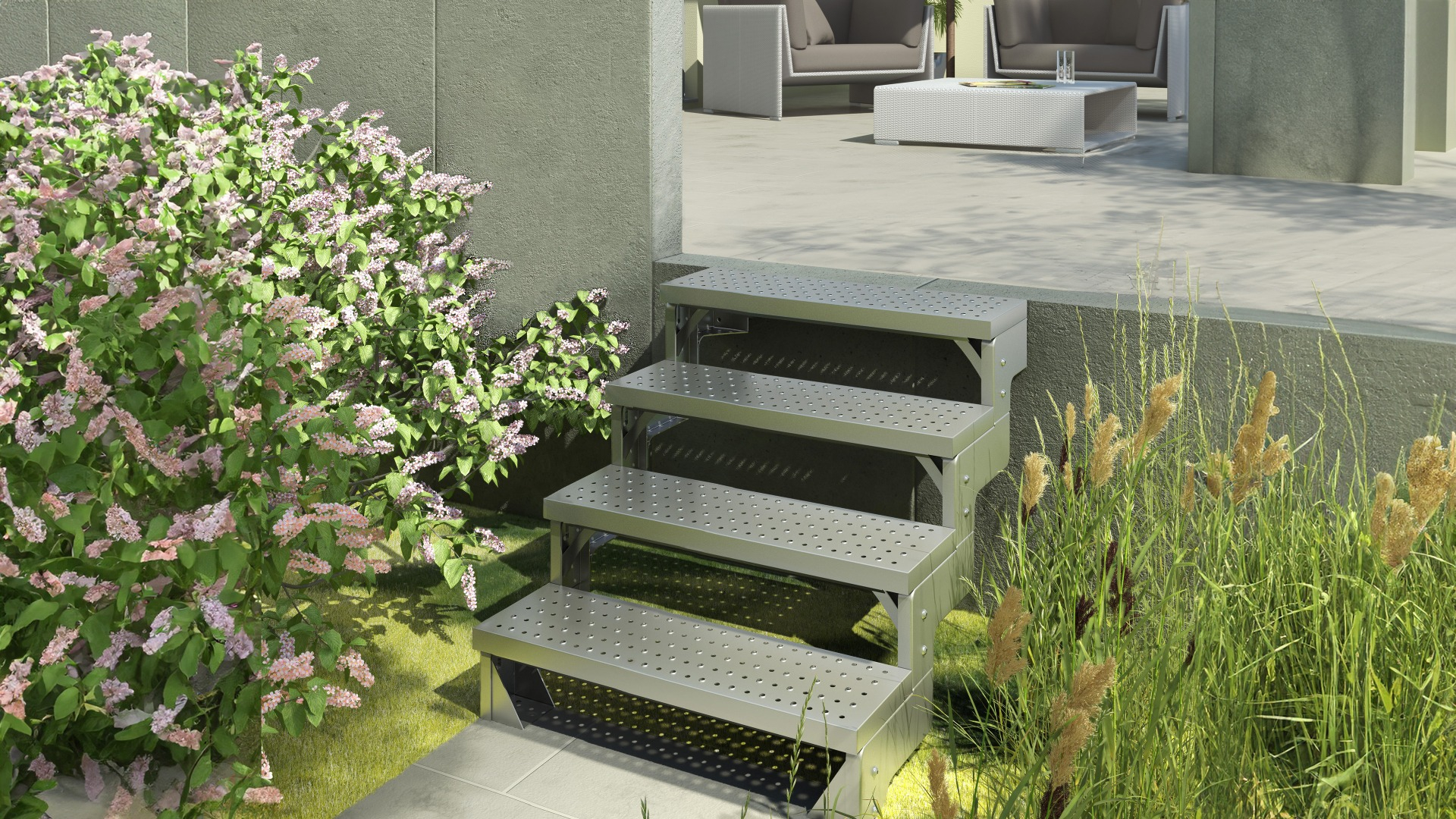

2 treads: 36 – 44 cm
3 treads: 54 – 66 cm
4 treads: 72 – 88 cm
5 treads: 90 – 110 cm
6 treads: 108 – 132 cm
7 treads: 126 – 154 cm
8 treads: 144 – 176 cm
9 treads: 162 – 198 cm
10 treads: 180 – 220 cm
11 treads: 198 – 242 cm
12 treads: 216 – 264 cm
In the drop down menu you select whether you want the staircase without a banister or with a banister on 1 side. If you wish to have a handrail both sides of the staircase you can buy the handrail banister separately.The handrail banister is strong and stylish made of 40mm aluminium and the vertical balusters are 25mm hot-dip galvanised steel. The balusters are easy to mount on the stringer sections of each tread.
Please be advised the one handrail banister is suitable for 6 treads, if your staircase has more than 6 treads you will need to buy 2 and cut to size, you will have everything you need to join the handrails seamlessly. You can also purchase the handrail after you have installed the main staircase.
QUALITY & SAFETY
To ensure we supply the highest quality product we manufacture to specific standards. The GARDENTOP is tested with a total load of up to 700 kg and a maximum point load of 200 kg. Complies with current European building standards EN1991 and EN1993.
Technical data
Product number | Please select a variant |
---|---|
EAN | Please select a variant |
Floor opening min. length | Please select a variant |
Floor opening min. width | Please select a variant |
Floor-to-floor height | Please select a variant |
Type | Straight flight |
Staircase width | Please select a variant |
Type of wood | Please select a variant |
Structure finish | Hot galvanized according to EN ISO 1461:2009 |
Tread rise | Please select a variant |
Number of risers | Please select a variant |
Number of treads | Please select a variant |
Tread material | Metal, perforated |
Tread thickness | 4 cm |
Tread width | Please select a variant |
Tread depth | 24 cm |
Banister variant | Please select a variant |
Handrail material | Please select a variant |
Handrail diameter | Please select a variant |
Bars material | Please select a variant |
Baluster finish | Please select a variant |
Pole material | Please select a variant |
Filling material | Please select a variant |
Use | Outdoor use |
Maximum load | Please select a variant |
Staircase definition | Please select a variant |
Tested | Please select a variant |
