Made-to-Measure loft ladder MINIFLEX
Flexible loft ladders made to your specification
Product description
The DOLLE MINIFLEX loft ladder comes complete with an aluminium scissor ladder with non-slip treads. This complete solution features a 64 mm trapdoor with EPS (expanded polystyrene), giving it a low U-value of 0.77 W/m2*K. Tested as a building component. MINIFLEX is used where there is a need for a loft ladder that does not take up much space and is also suitable for small ceiling openings. A specially developed spring system provides even weight balancing, ensuring smooth and safe operation.
The casing is 14 cm high and made of spruce. The trapdoor's robust sandwich construction is 5.6 cm thick. The loft ladder has got an attractive finish with hidden hinges makes it easy to clad, paint, and varnish. The casing and trapdoor are rebated, and the casing has a sealing strip for extra tight closure. The ladder's deep treads are just one of the details that set DOLLE MINIFLEX apart from other loft ladders, the solid aluminium treads feel safe and comfortable to climb on. It can be pulled in and out with a easy pull or push and can be installed in small, tight spaces as it takes up a minimal amount of space. The treads are 7.8 cm deep and tested for a load of up to 100 kg and a U-value of 0.77 W/m²K, DOLLE MINIFLEX is suitable for all well-insulated spaces.

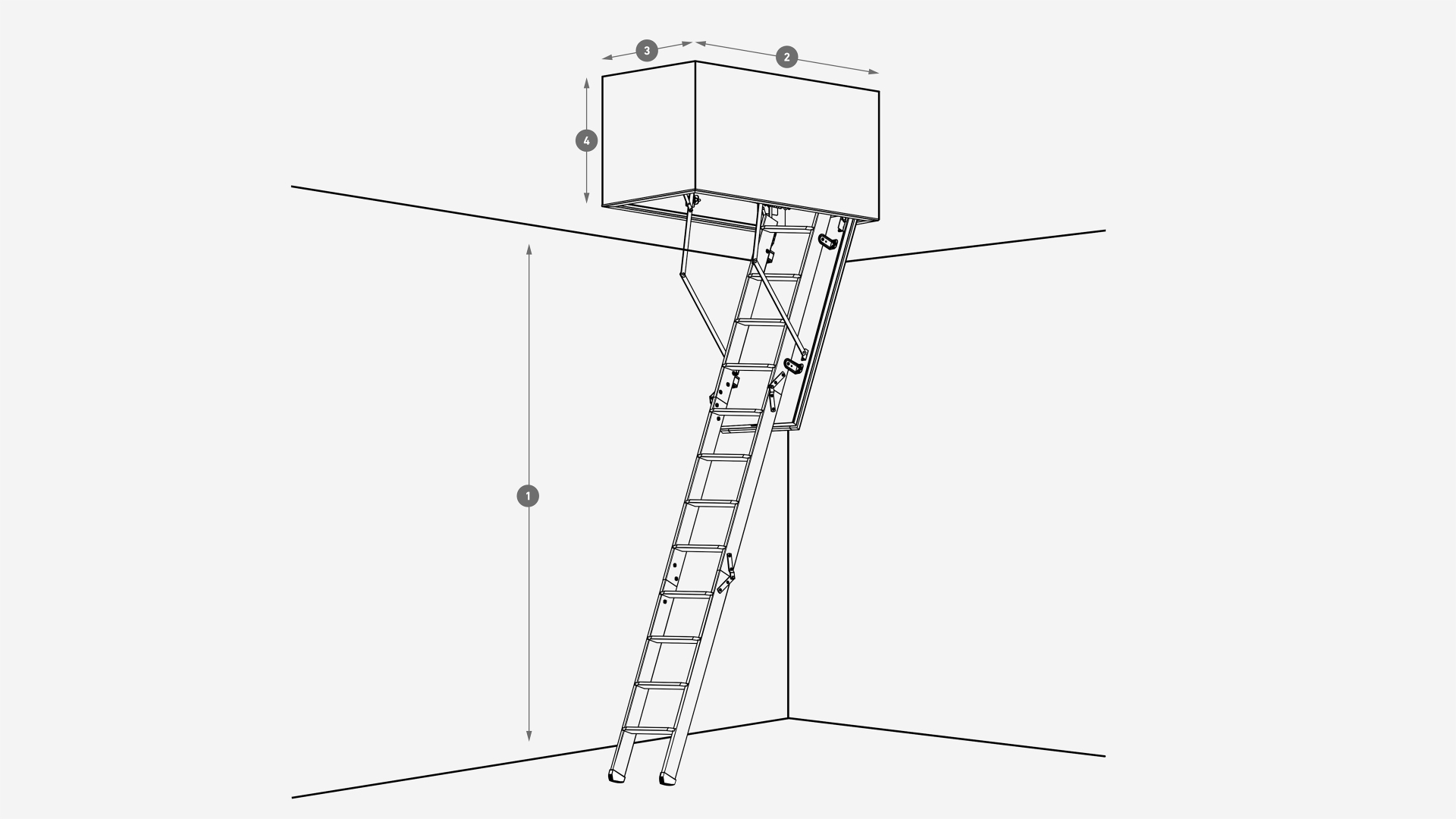

For a room height above 260 cm, there must be a minimum rough opening length of 80 cm. The casing width plus casing length must not exceed 240 cm. It is not possible to add extension links to the ladder. The casing height can be a maximum of 14 cm.
The difference between ceiling opening and casing dimensions?
We use the term " ceiling opening ". The term refers to the size of the opening in the ceiling where the loft ladder will be placed. |
 |
Please note that this is a made-to-measure product and therefore cannot be returned or cancelled after purchase.
Technical data
| Product number | Please select a variant |
|---|---|
| EAN | Please select a variant |
| Swing clearance | Please select a variant |
| Horizontal clearance | Please select a variant |
| U-value (W/m²* K) | 0.7700 |
| Attic ladder type | Please select a variant |
| Usage | Please select a variant |
| Sections | Please select a variant |
| Ladder material | Please select a variant |
| Trapdoor material | Please select a variant |
| Trapdoor thickness | 64 mm |
| Insulation | 58 mm |
| Casing material | Please select a variant |
| Casing thickness | Please select a variant |
| Casing (height) | Please select a variant |
| Number of treads | Please select a variant |
| Tread rise | Please select a variant |
| Tread material | Please select a variant |
| Tread thickness | Please select a variant |
| Tread width | Please select a variant |
| Tread depth | Please select a variant |
| String material | Please select a variant |
| String thickness | Please select a variant |
| String depth | Please select a variant |
| Maximum load | Please select a variant |
| Product weight | Please select a variant |
| Tested | Please select a variant |
