Loft ladder clickFIX® 76G
FLUSH WITH CEILING – 2 INSTALLATION OPTIONS
Product description
LOFTLADDER CLICKFIX® 76 FLUSH TO YOUR CEILING – TWO INSTALLATION OPTIONS AVAILABLE
DOLLE clickFIX® 76G can now also be installed flush to your ceiling. The DOLLE clickFIX® loft ladder comes with two options, one for flush installation integrated in the plaster board or a second option to use architraves that visually conceal the installation gap. Both options are designed to be simply attached to the casing for a seamless finish. The flush installation, here the plasterboards are placed directly against the profile mounted on the loft ladder casing, leaving only a narrow line visible when the plasterboard is mounted. This plasterboard profile makes the plasterboard strong and solid – keeping a beautiful finish forever.
High quality, top loft ladders form the transition from the living area to the loft space. In addition to a simple and safe installation process the clickFIX® also prevents the loss of energy preventing the escape of warm air from the living area. The patented loft ladder DOLLE clickFIX® meets all requirements in one system: Thanks to its modular construction and easy installation along with excellent insulation properties the loft ladder has a component U-value of 0.49 W / m²K.
EASY INSTALLATION FOR TRADE PROFESSIONALS AND PEOPLE WHO ENJOY DIY
Thanks to its low weight and patented assembly technology with click modules, clickFIX® can also be easily installed by one person. It's simple, align the white 240 mm high casing, screw in place, click on the trapdoor and ladder section and adjust to the room height, job done.
CPL COATING FOR LONG-LASTING PROTECTION
The 76 mm thick trapdoor of the DOLLE clickFIX® keeps heat efficiently in the living area and is also CPL-coated. With this particularly robust laminate, the trapdoor is significantly more abrasion, scratch and impact-resistant than other surfaces. The secret lies in the top layer, which consists of melamine resin. It withstands light scratches as well as normal dirt, it's solvent and heat resistant, smudge-proof and easy to clean. The trapdoor maintains it bright white for a long time as impurities can be easily removed. In addition, CPL surfaces are colour and light-fast and therefore do not darken over time so the trapdoor not only fits discreetly into the ceiling it also remains in pristine condition.

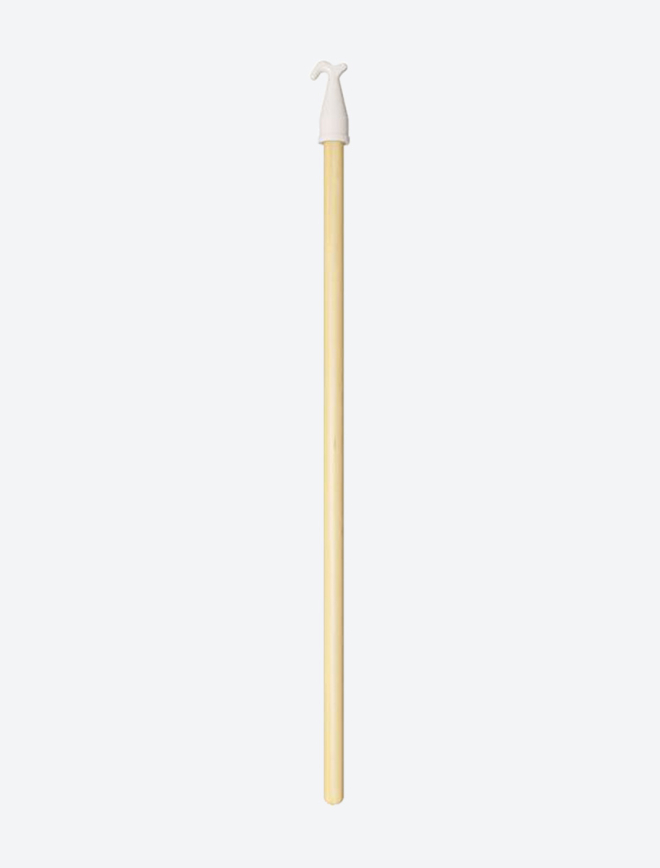

Operating pole and finishing architrave is included with this premium loft ladder.
The loft ladder comes complete with instructions, but you can also view our full instillation video that shows the process from start to finish, you will also be able to view the quality of the components that make up the DOLLE clickFIX®.

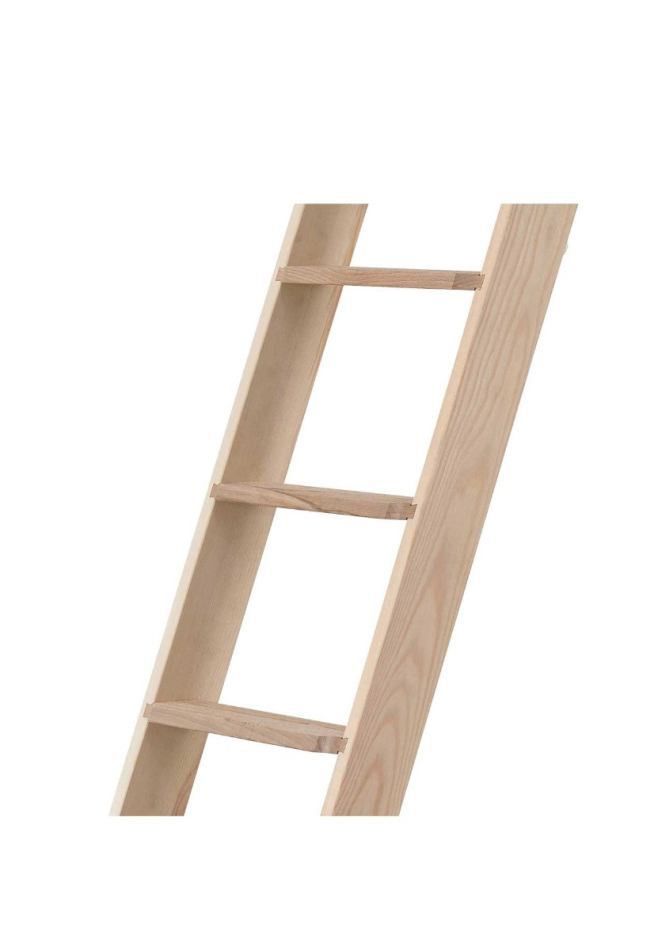

Need a longer ladder? You can add an extension kit
We offer a bespoke extension kit suited for the DOLLE clickFIX® If you need extra height on your loft ladder, buy this loft ladder extension kit to add up to 70 cm in height, so simple to install.

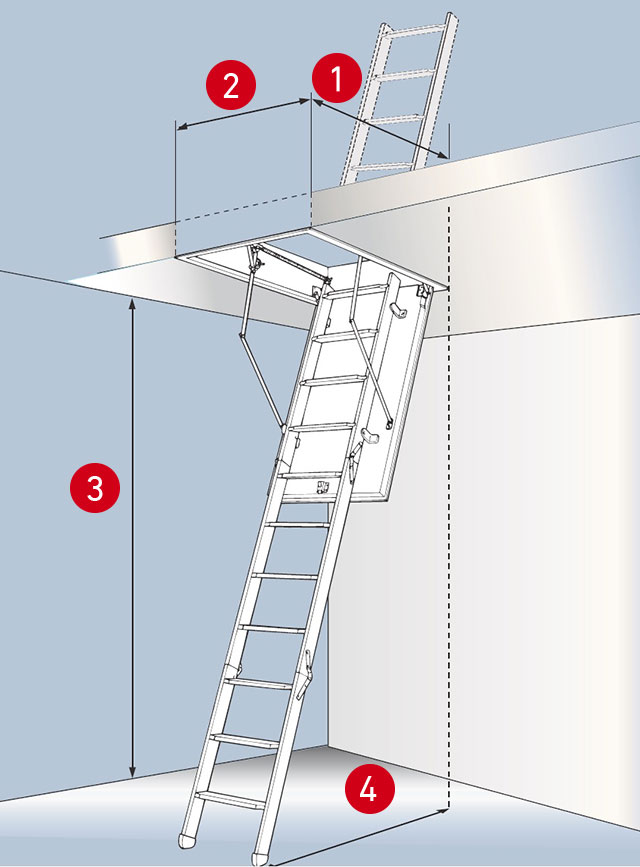

Technical data
1
|
Please select a variant |
---|---|
2
|
Please select a variant |
3
|
Please select a variant |
4
|
Please select a variant |
Product number | Please select a variant |
Finish | Please select a variant |
Opening size (length) | Please select a variant |
Opening size (width) | Please select a variant |
Floor-to-ceiling height | Please select a variant |
Total going | Please select a variant |
Swing clearance | Please select a variant |
Horizontal clearance | Please select a variant |
U-value (W/m²* K) | 0.4900 |
Attic ladder type | Folding ladder |
Sections | Please select a variant |
Ladder material | Wood |
Trapdoor material | Sandwich construction |
Trapdoor thickness | 76 mm |
Insulation | 70 mm |
Casing material | Laminated pine, white |
Casing thickness | 18 mm |
Outside casing (length) | Please select a variant |
Outside casing (width) | Please select a variant |
Casing (height) | Please select a variant |
Tread material | Solid beech |
Tread thickness | 17.5 mm |
Tread width | Please select a variant |
Tread depth | 83 mm |
String material | Pine |
String thickness | 21 mm |
String depth | 83 mm |
Maximum load | 150 kg |
Product weight | Please select a variant |
Tested | Please select a variant |
