When installing a loft ladder, it is important to follow our installation guide carefully. At DOLLE, we provide detailed instructions to ensure a correct and safe installation. Our clickFIX® series is designed with a patented click system, making assembly quick and easy – often possible for one person without the need for special tools. We recommend reading the entire guide before starting to ensure the best result.

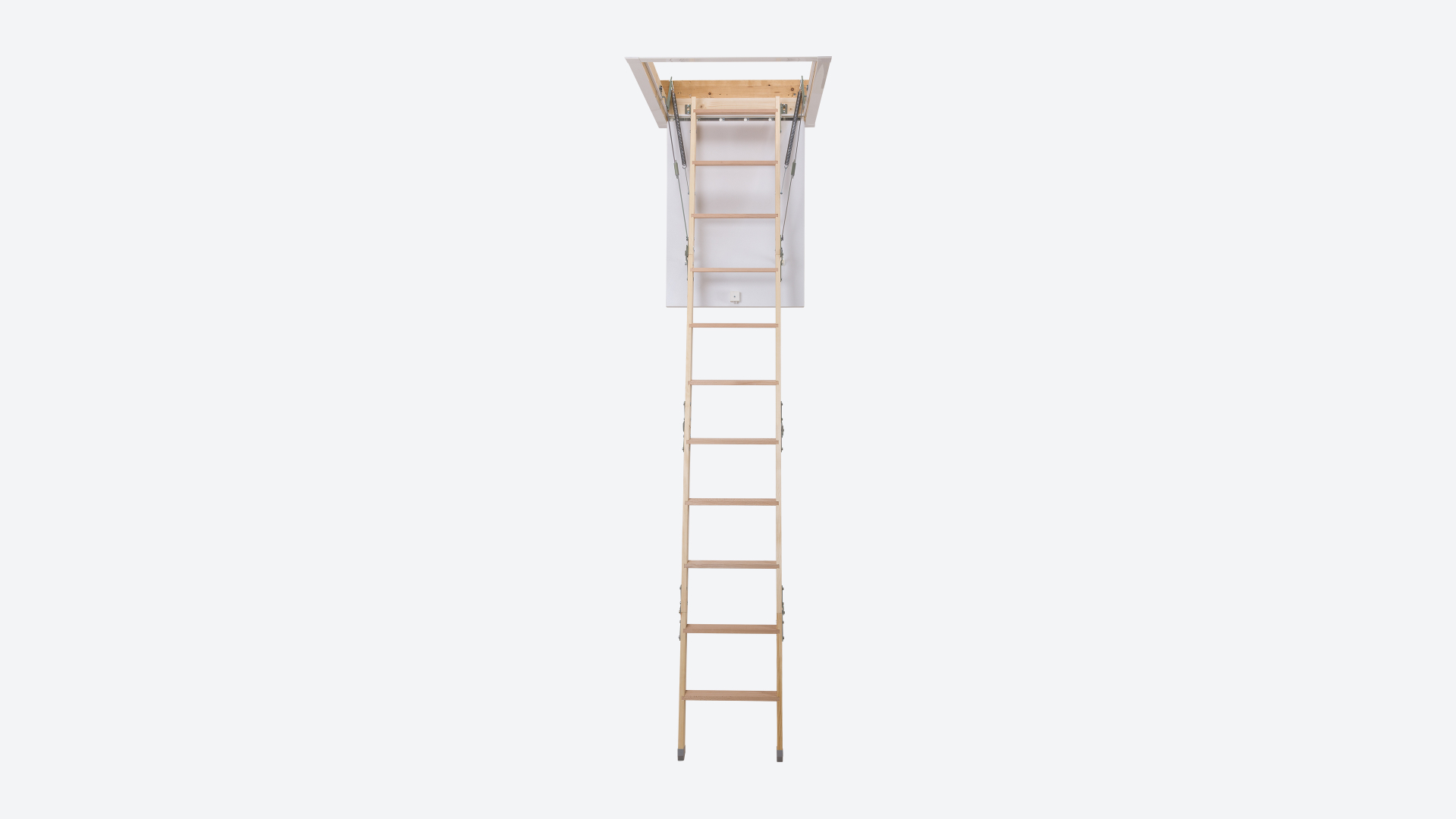

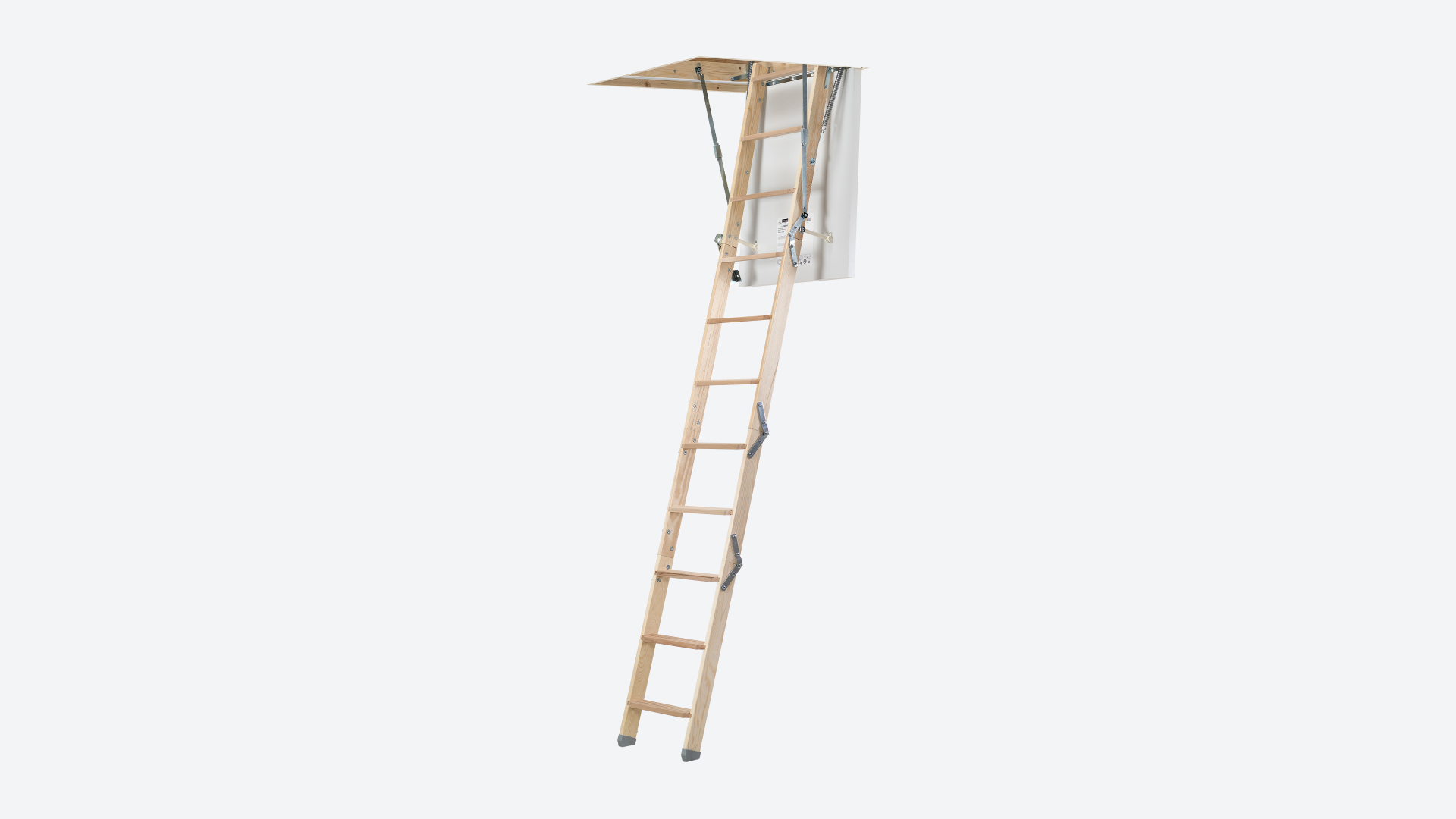

Loft ladder clickFIX 36G Mini
IDEAL FOR EXTRA NARROW SPACES - THE SMALLEST TIMBER LOFT LADDER
Product description
clickFIX® loft ladders meet the high energy required for homes today.
As the clickFIX® Mini comes complete with draft proof timber hatch and polyurethane trapdoor they reduce heat loss compared with uninsulated ceilings. Minimal cold bridges occur because the trapdoor and hatch consist solely of a high-insulating materials. The loft ladder weighs about 25% less than traditional timber loft ladder making easy to operate. The loft ladder can be installed by one person with its easy-click mounting process without the need for tools. The patented clickFIX® technology means the best insulation values available in the UK today.
DOLLE clickFIX® 36 MINI is insulated with 30 mm expanded polystyrene (EPS). U-value: 0.99 W/m2 *K. The low u-value is particularly remarkable as all products are tested as a building component similar to doors and windows. It also comes complete with non-slip treads for extra security and a wooden push/pull operating pole for easy extraction.
Technical data
1
|
Please select a variant |
---|---|
2
|
Please select a variant |
3
|
Please select a variant |
4
|
Please select a variant |
Product number | Please select a variant |
Finish | Please select a variant |
Opening size (length) | Please select a variant |
Opening size (width) | Please select a variant |
Floor-to-ceiling height | Please select a variant |
Total going | Please select a variant |
Swing clearance | Please select a variant |
Horizontal clearance | Please select a variant |
U-value (W/m²* K) | 0.9900 |
Attic ladder type | Folding ladder |
Sections | Please select a variant |
Ladder material | Wood |
Trapdoor material | Sandwich construction |
Trapdoor thickness | 36 mm |
Insulation | 30 mm |
Casing material | Spruce |
Casing thickness | 18 mm |
Outside casing (length) | Please select a variant |
Outside casing (width) | Please select a variant |
Casing (height) | Please select a variant |
Tread material | Solid beech |
Tread thickness | 17.5 mm |
Tread width | Please select a variant |
Tread depth | 69 mm |
String material | Pine |
String thickness | 21 mm |
String depth | 69 mm |
Maximum load | 150 kg |
Product weight | Please select a variant |
Tested | Please select a variant |
