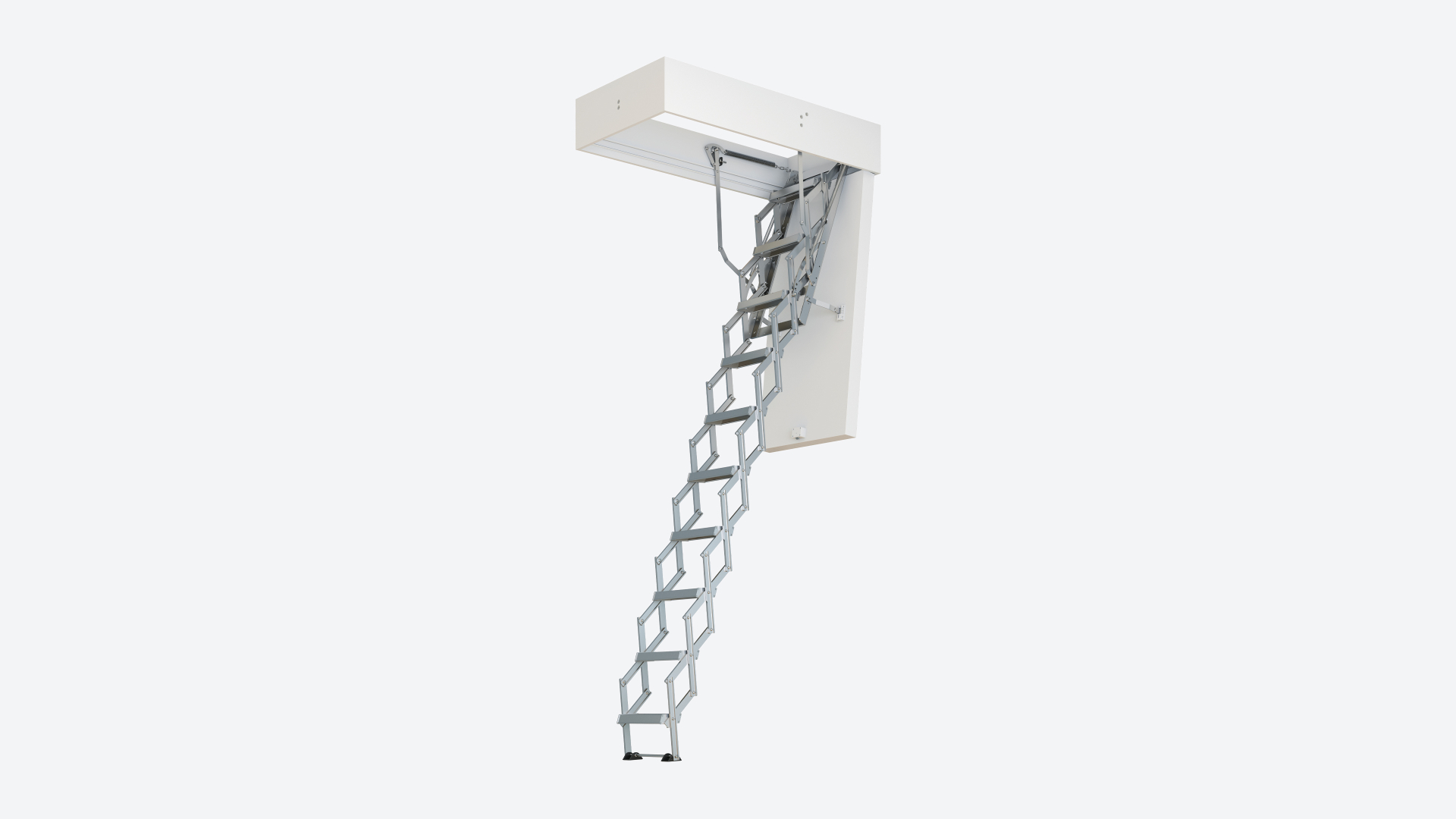

Loft ladder clickFIX® 76G vario

High ceiling loft ladder - Up to 415 cm

Extra ceiling height up to 4.15 meter
U-value 0,49 W / m² · K.
Also available for roof hatch
Concertina scissor ladder, Alu profile
DOLLE clickFIX® 76G vario concertina loft ladder offers many different height and hatch options. It was developed to reach a maximum ceiling height of 415 cm and comes complete with telescopic handrail extra security and comfort.
Read more

Configure your product

Accessories 1 product

Products with the pencil icon require your customization after being added them to the cart.
As low as  £999.99
Product description

You can choose from a variety of height options and hatch dimensions

The DOLLE clickFIX® 76G vario has a concertina ladder made of aluminium profiles that can be ordered with 9, 10, 11, 12, 13 or 14 treads depending on the height you require. The 14-tread option it reaches a maximum ceiling height of 415 cm and comes complete with 11 cm deep and anti-slip treads offer safe and comfortable access. The concertina ladder can easily be extended and retracted and comes as part of the DOLLE clickFIX® range. This means it must meet all the requirements for safety and comfort, the greatest possible thermal insulation and quick and easy installation. In combination with the 6 standard box dimensions as well as individual special dimensions, this results in a large number of possible model variants. This means that clickFIX® vario can be configured individually for almost any installation situation. The 76 mm thick trapdoor of the DOLLE clickFIX® vario keeps heat efficiently in the living room and is also CPL-coated. With this particularly robust laminate, the trapdoor cover is significantly more resistant to abrasion, scratches and impacts than other surfaces. DOLLE clickFIX® vario has a component-tested U-value of 0.49 W / m² · K, tested by ift Rosenheim.


We offer two installation solutions, built into plasterboard ceilings or finish with our architraves.

Our new DOLLE clickFIX®️ comfort loft ladder has two installation solutions where you can install into plasterboard so its flush with ceiling. Thanks to the newly developed loft ladder profile we have a durable fully integrated ceiling solution where the plasterboard is placed directlyagainst the loft ladder profile and only the trapdoor is visible at the entrance to the loft space. In the second option is you can install the traditional way using our new architraves. Either way you can visually conceal the installation joint for a seamless finish and both options are included with the loft ladder.



Benefit from easy installation thanks to clickFIX® technology

The patented articulated lever in the casing of all DOLLE clickFIX® models allows assembly without tools and can be adjusted between the lever and bolt plate. The lever is simply pushed onto the bolt plate, turned around and cannot be released again afterwards. With a height of 24 cm, the casing offers the opportunity to be installed in ceilings with stronger insulation or suspended ceilings. All models are equipped with a vapour barrier made of TwinActive-foil. This contributes to optimal heat-insulation and reduces risk of condensation and prevents possible appearance of mould. It’s designed to keep heat where it should be! In the home or the workspace.

As you would expect from a premium clickFIX® product you get a matching telescopic handrail, operating pole as well as architraves to finish.

Technical data
1
Opening size (length)
Please select a variant
2
Opening size (width)
Please select a variant
Floor-to-ceiling height
Please select a variant
R
Total going length
Please select a variant
Product number Please select a variant
EAN Please select a variant
Opening size (length) Please select a variant
Opening size (width) Please select a variant
Floor-to-ceiling height Please select a variant
Total going length Please select a variant
Swing clearance Please select a variant
Horizontal clearance Please select a variant
U-value (W/m²* K) 0.4900
Attic ladder type Concertina ladder
Usage Manual
Sections Please select a variant
Ladder material Aluminum
Trapdoor material Sandwich construction
Trapdoor thickness 76 mm
Insulation 70 mm
Casing material Laminated pine, white
Casing thickness 18 mm
Outside casing (length) Please select a variant
Outside casing (width) Please select a variant
Casing (height) Please select a variant
Number of treads Please select a variant
Tread rise Please select a variant
Tread material Aluminium, U-profile (2 mm)
Tread thickness 2 mm
Tread width 32 cm
Tread depth 11 cm
String material Aluminum
String thickness Please select a variant
String depth Please select a variant
Maximum load 150 kg
Product weight Please select a variant
Tested Airtight EN 12207 class 4, EN 1026:2016, FSC® certified wood, Manufactured according to EN 14975
